QT8-15 Automatic Brick Making Machine

QT8-15 Automatic Brick Making Machine

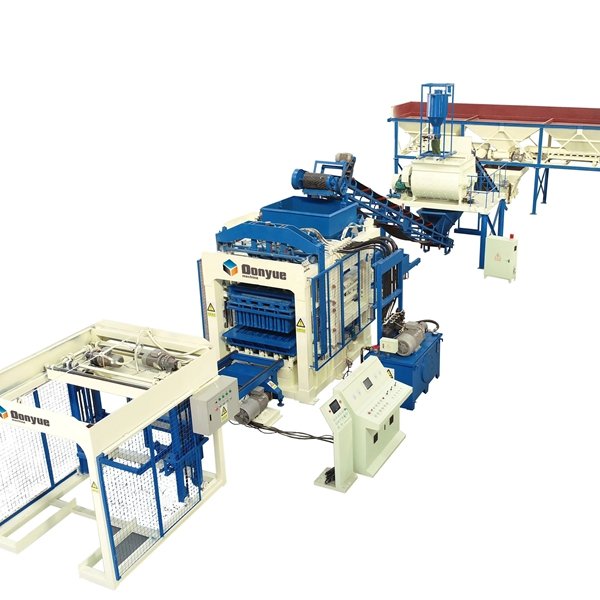

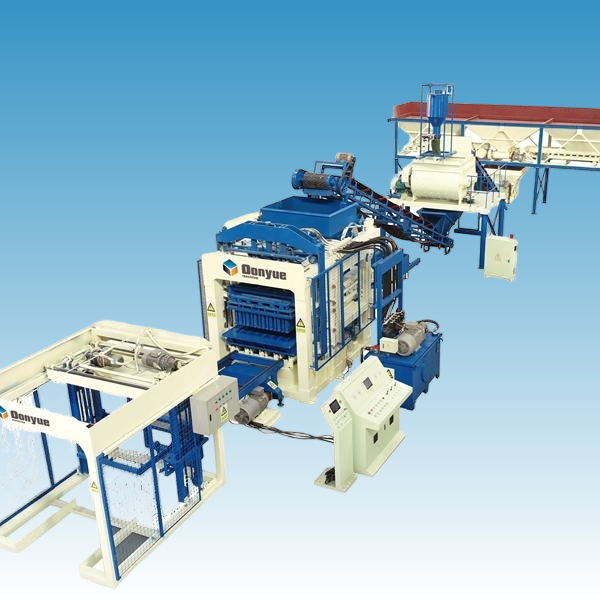

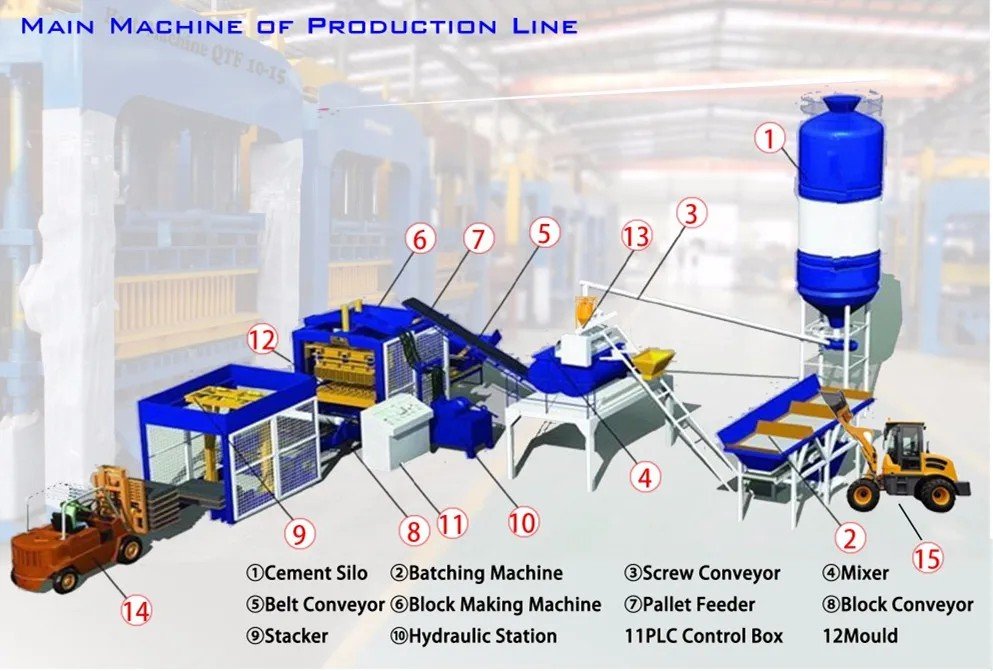

QT8-15 automatic block production line

  1. Full automatic block paver brick block making machine can produce various solid blocks , hollow blocks,   pavers   and curbstones by changing moulds.
  2. Full automatic block paver brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
  3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
  4. Switches will use Japan Omron or France Schneider band, motor will use Siemens or ABB brand.

QT8-15 Automatic Brick Making Machine



QT8-15 automatic block production line

  1. Full automatic block paver brick block making machine can produce various solid blocks , hollow blocks,   pavers   and curbstones by changing moulds.
  2. Full automatic block paver brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
  3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
  4. Switches will use Japan Omron or France Schneider band, motor will use Siemens or ABB brand.



Main technical parameters
Dimension of Host Machine 3800x2200x2750MM Host Machine Power 45kw
Wight Of host machine 11.5Tons Vibration Force 70-100KN
Moldling area 1196x880MM Mixer Model JS750
1Water consumption 10-15 Ton/ day Pallet Size 1050x900x28MM
Workshop area 250-300m2 Voltage 380/415/440



Theoretical Production Capacity
Size PCS /Mould PCS/Hour PCS/8 Hour
Hollow 400x200x200MM 8 1420-1920 11360-15360
400x115x90MM 21 3780-5040 30240-40320
Solid 230x110x53MM 45 8100-10800 64800-86400
Paver 200x100x60MM 28 5040 40320
Paver 200x163x60MM 20 3600 28800
